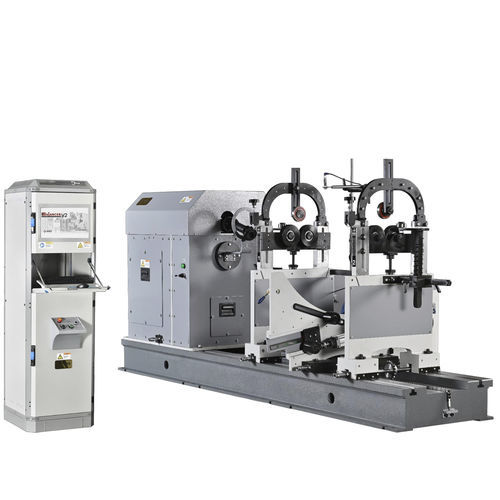

Horizontal balancing machine H-IHB 3

dynamicstaticbelt-driven

H-IHB Heavy Horizontal Balancing Machine is used for static and dynamic balancing of work pieces such as impeller , fan, propeller, electric rotor , separator, turbine , rollers and so on. We advice Shaft Drive Unit for our Heavy duty machines. Machine speed can be adjusted by gearbox located on shaft drive and by the speed controller. Rotor is connected to the machine by the help of industrial shaft. It allows precise measurements and ease of use for big diameter and heavy rotor types. Balancing program works with the licensed Windows operating system. It is easy to be used by the operator. Re- calibration for different rotor types is not required. Operator can calculate the tolerance in acoordance with ISO 1940 standards before begining the balancing process by entering the dimension and the weight of work piece. Training and installation process of the machines which are given by our staff are finalized with the submission of a certificate. Machine calibration is made in our company and calibration certificate is provided together with the machine. All our machines have CE certificate. Drill unit can be added to the machine in accordance with workpiece to be balance. Maximum Rotor Weight - 3000 kg (6613,87 lb) Minimum. Rotor Weight - 30 kg (66,14 lb) Maximum Rotor Diameter - 1400 mm (55,12 in.) Minimum Shaft Diameter - 20 mm (0,79 in.) Maximum Shaft Diameter - 300 mm (11,81 in.) Motor power - 15 kW (20,39 HP) Drive Unit - 15 k
