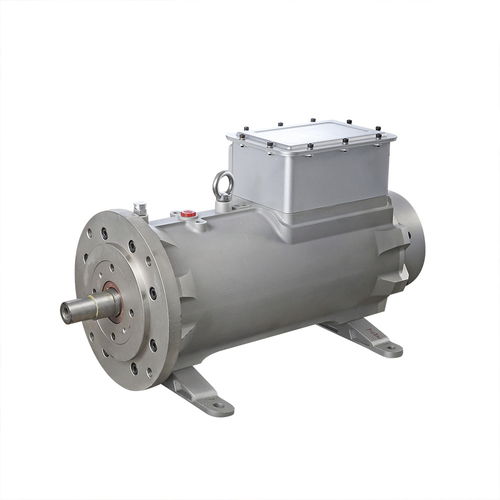

AC motor SRPM165H4XO100synchronous380 V4-pole
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- synchronous
- Voltage
- 380 V
- Number of poles
- 4-pole
- Other characteristics
- energy-saving, high-speed
- Power
Max.: 200 kW
(271.924 hp)Min.: 100 kW
(135.962 hp)- Torque
39.6 Nm
(29.2075 ft.lb)- Rotational speed
Max.: 24,000 rpm
(150,796.45 rad.min-1)Min.: 20,000 rpm
(125,663.71 rad.min-1)
Description
Product Feature
1.Suitable for the 24000rpm high speed
2.Reserve a large margin of security
3.High power & high torque
4.High efficiency
5.Small size
6.Low noise low vibration
7.The autonomous patented cooling structure
Specifications
Model type: SRPM165H4XO100
Voltage: 380V AC
Rated Power: 100KW
Rate Torque : 39.6 N.m
Working speed: 24000rpm
Efficiency: 96.5%
Duty Type: S1
Isolation: H/F
Water/dust Proof: IP54(IP67 option)
Pole Number: 4
N Weight: 48KG
Cooling Method: Patented Cooling System
Position Signal: Resolver
Application
Many industrial usage（compressor,pump,blower,air knife,spray dryer etc.)
