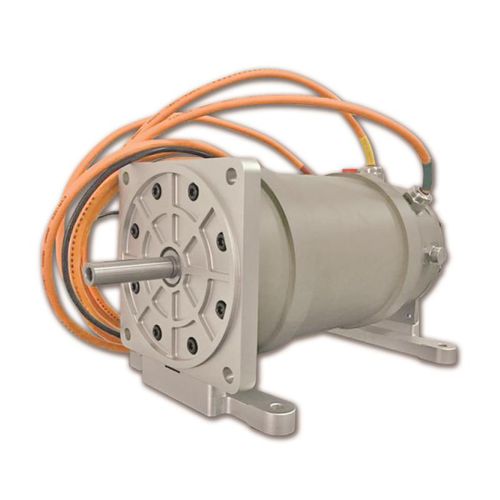

AC motor SRPM112H4O20brushless380 Vfor industrial applications
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- brushless
- Voltage
- 380 V
- Applications
- for industrial applications
- Other characteristics
- high-power, high-speed
- Power
20 kW
(27.192 hp)- Torque
8 Nm
(5.9005 ft.lb)- Rotational speed
Min.: 20,000 rpm
(125,663.71 rad.min-1)Max.: 24,000 rpm
(150,796.45 rad.min-1)
Description
Product Feature
1.Suitable for the 24000rpm rated speed
2.High power & high torque
3.High efficiency
4.Small size
5.Low noise low vibration
6.Patented cooling structure
Specifications
Model type: SRPM112H4O20
Voltage: 380V AC
Rated Power: 20KW
Rated Torque : 8N.m
Rated Speed: 24000rpm
Isolation: H
N Weight: around 20KG
Cooling Method: oil/water optional
Rated Frequency:800HZ
Pole:4
Application
Many industrial usage（compressor,pump,blower,air knife,spray dryer etc.)
For compressor of Hydrogen fuel cell vehicle
