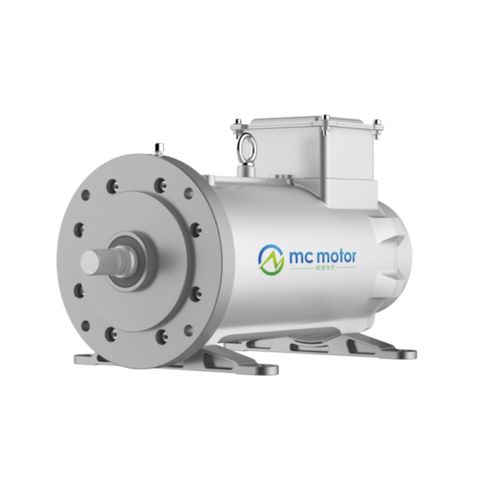

Three-phase motor SRPM165H4XO22brushless380 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- AC/DC
- three-phase
- Type
- brushless
- Voltage
- 380 V
- Configuration
- permanent magnet
- Other characteristics
- high-efficiency
- Power
22 kW
(29.912 hp)- Torque
14 Nm
(10.3259 ft.lb)- Rotational speed
15,000 rpm
(94,247.78 rad.min-1)
Description
Product Feature
1.Suitable for the 15000rpm high speed
2.Reserve a large margin of security
3.High power & high torque
4.High efficiency
5.Small size
6.Low noise low vibration
7.The autonomous patented cooling structure
Specifications
Model type: SRPM165H4XO22
Voltage: 380V AC
Rated Power: 22KW
Rated Torque : 14N.m
Rated speed: 15000rpm
Efficiency: 96.2%
Isolation: H/F
Water/dust Proof: IP54(IP67 option)
Pole Number: 4
N Weight:<36kg
Cooling Method:Oil cooling
Application
Many industrial usage（compressor,pump,blower,air knife,spray dryer etc.)
