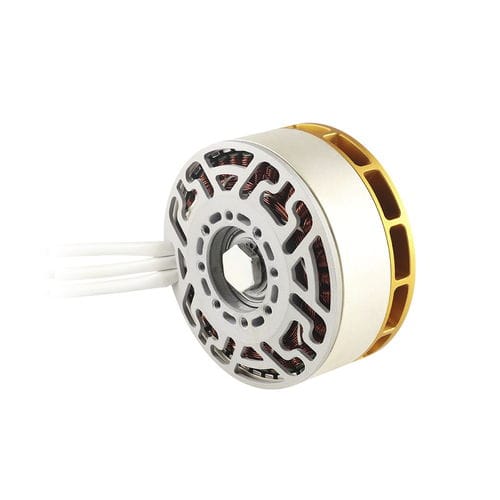

BLDC motor W92KV120smallconstant speedlow-noise
Add to favorites
Compare this product
Characteristics
- Type
- BLDC
- Configuration
- small
- Other characteristics
- constant speed, low-noise
- Power
2.25 kW
(3.059 hp)- Rotational speed
4,400 rpm
(27,646.02 rad.min-1)
Description
Product Feature
1.Unique external rotor design
2.Midium speed with high efficiency
3.Super high power density
4.Small size
5.Low noise and vibration
6.Water resistance and corrosion resistance
7.Patented one-piece fan design
Specifications
Large load electric-powered unmanned aerial vehicles(UAV),including agriculture and industry
Model type: W92KV120
Voltage: 12S VDC
Working Speed: 4400rpm
Output Power/20 min: 2250W
Peak Power:4100W
Efficiency: 91.5%
Pole Number:40
Insulation:H
NW: 750g
Application:
Unique outer rotor design,usually apply for UVA.
