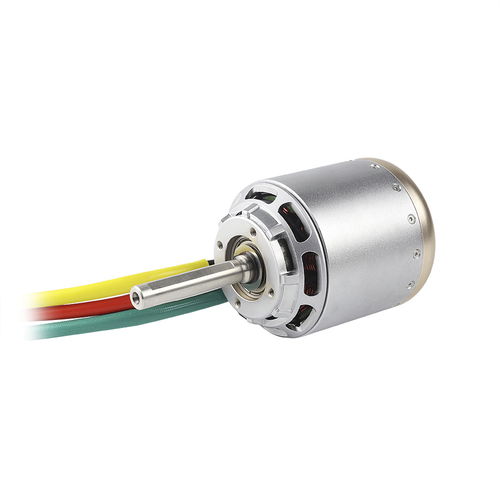

DC motor W70KV450-15BLDCair-cooledhigh-efficiency
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- BLDC
- Cooling mechanism
- air-cooled
- Other characteristics
- high-efficiency, high-speed
- Power
15 kW
(20.394 hp)- Rotational speed
20,000 rpm
(125,663.71 rad.min-1)
Description
Product Feature
1. Unique external rotor design
2. Midium speed with high efficiency
3. Super high power density
4. Small size
5. Low noise and vibration
6. Water resistance and corrosion resistance
7. Patented one-piece fan design
Specification
Model type: W70KV450-15
Voltage: 51.8VDC
Working Speed: 20000rpm
Output Power: 15KW
Continuously Operating current: 340A
Efficiency: 92%
Motor Diameter: 70mm
Motor Length: 93.5mm
NW: 1.42KG
Power Density: 10.56kw/kg
Application:
Unique outer rotor design,usually apply for UVA.
