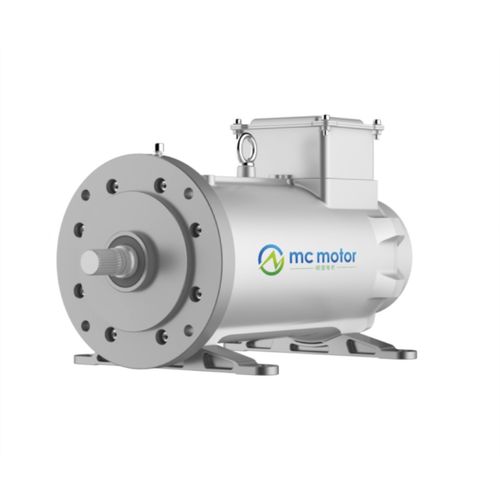

AC motor SRPM112H4W22synchronous380 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- synchronous
- Voltage
- 380 V
- Configuration
- permanent magnet, compact
- Cooling mechanism
- water-cooled
- Applications
- for air compressors
- Power
22 kW
(29.912 hp)- Torque
8.8 Nm
(6.4905 ft.lb)- Rotational speed
24,000 rpm
(150,796.45 rad.min-1)
Description
Product Feature
1.Suitable for the 24000rpm high speed
2.Reserve a large margin of security
3.High power & high torque
4.High efficiency
5.Small size
6.Low noise low vibration
7.The autonomous patented cooling structure
Specifications
Model type: SRPM112H4W22
Voltage: 380V AC
Rated Power: 22KW
Rate Torque : 8.8N.m
Rated speed: 24000rpm
Efficiency: 94.3%
Isolation: H/F
Water/dust Proof: IP54
Pole Number: 4
N Weight: around 19KG
Cooling Method: Water
Application
High-speed Compressors,Fans,Pumps
