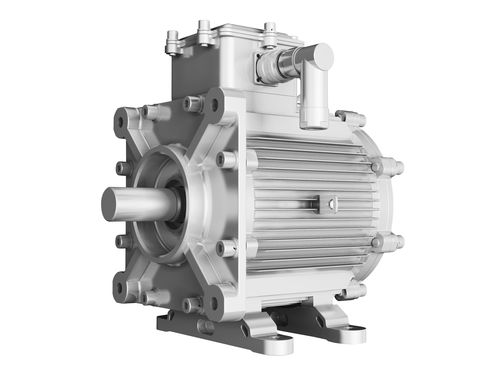

AC motor SRPM155L86synchronous380 Vcompact
Add to favorites
Compare this product
Characteristics
- AC/DC
- AC
- Type
- synchronous
- Voltage
- 380 V
- Configuration
- compact
- Other characteristics
- direct-drive, high-efficiency
- Power
6 kW
(8.158 hp)- Torque
11.5 Nm
(8.482 ft.lb)- Rotational speed
5,000 rpm
(31,415.93 rad.min-1)
Description
Application
1.Braking system
2.Hydrogen Oxygen air compressors
3.Hydrogen circulating system
4.Power Steering system
Specifications
Model type: SRPM155L86
Voltage: 380V AC
Rated Power: 6KW
Rate Torque : 11.5N.m
Rated Speed: 5000rpm
Efficiency:93.6%
Isolation: H/F
Water/Dust Proof: IP54(IP67 option)
N Weight: around 30KG
Duty Type:S1
Pole:8
Cooling Method: natural cooling
Installation Method: B35
