- WLAN antenna
- MC Technologies GmbH
WLAN antenna 101216external
Add to favorites
Compare this product
Characteristics
- Network
- WLAN
- Type
- external
- Frequency
2,400 MHz, 5,300 MHz
- Gain
Max.: 3 dB
Min.: 0 dB
Description

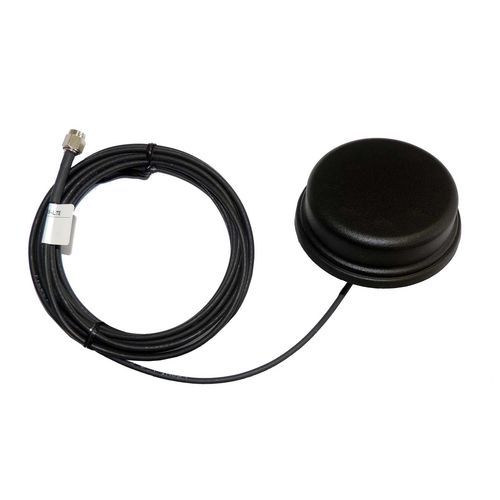

High-quality WLAN roof antenna from the German manufacturer Reel/Reinheimer
Ideal for screwing onto control cabinets
High vandalism resistance
maximum 3dbi gain
5m RG 174 cable, SMA
Particularly high protection class IP69k
Technical specifications
Networks: WLAN
Frequencies: 2400/5300 MHz
Gain: max. 3 dbi
Mounting type: Mounting on the control cabinet (drilling required)
Cable length: 5m RG174
Connector: SMA (male)
Dimensions: Ø approx. 76mm, High approx. 23mm
Protection class: IP69k
