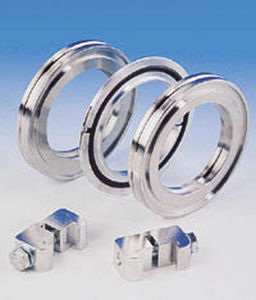

Joining flange 2 1/2 - 20", 150 °C | ISO LF

stainless steellap joint

MDC's Large-Flange™ ISO LF components are an economical system of reusable and interfacing stainless steel vacuum fittings for tube sizes ranging from 2-1/2" through 20" diameters. Large-Flange™ ISO LF flanges pick up where the Kwik-Flange™ ISO KF system leaves off. These flanges can operate in high vacuum environments to pressures in the 1x10-8 Torr range. The Large-Flange™ ISO LF flange system is ideally suited for applications requiring rapid and frequent assembly and disassembly. MDC ISO LF flanges comply with all ISO specifications for vacuum mounting hardware and are compatible with most third party ISO LF flanges and components. Features : - Bakeable to 150°C - Fast connect and disconnect - Economical reusable fittings - Genderless geometry - Rotatable bolt ring adapter - Elastomer gasket seal - Varied fastening methods - ISO KF and LF compatible - Specialty fittings available - Type 304 stainless steel construction
