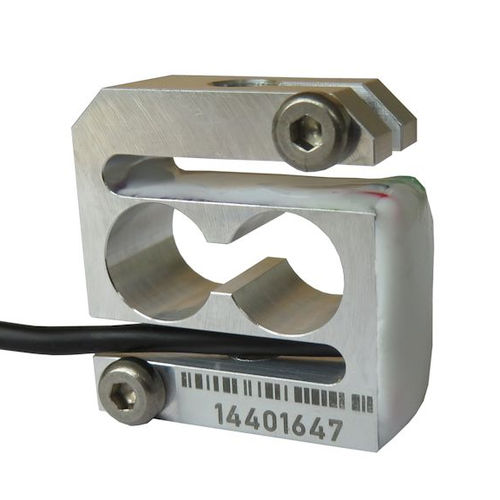

Tension/compression load cell KD24sS-beamaluminum alloystainless steel
Add to favorites
Compare this product
Characteristics
- Type
- tension/compression
- Form
- S-beam
- Other characteristics
- aluminum alloy, stainless steel
- Rated force
Max.: 1,000 N
Min.: 2 N
Description
type: s-form force sensor;
accuracy class: 0,1 %;
dimensions: 24 mm x 26 mm x 10 mm;
force transmission: 2 x female thread M5x0,8; / 2 x clamping bush diameter 5 H7;
connection: 2 m STC-31V-4 ;
material: aluminium alloy / stainless steel;
weight: 12 g;
