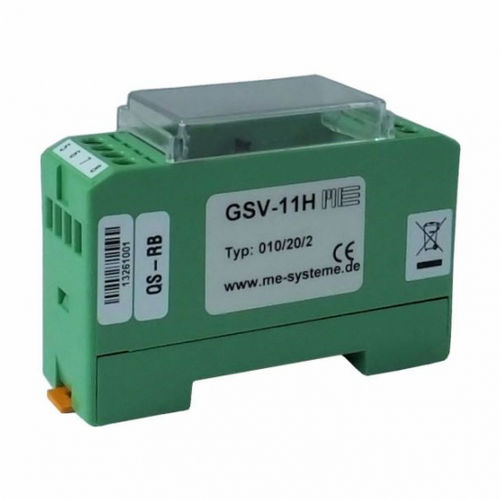

Signal amplifier GSV-11H

measuringanalogfor strain gauge sensors

1- channel straingauge amplifier in DIN rail housing; connection: 8 clamp connections;; dimensions: 75 mm x 25 mm x 53 mm; analog output: -10V...+10V / 4...20mA; zero-point adjustment: on 0 V or on 5 V; limit frequency: 20Hz; input sensitivity: 2/1/0.5/0.2 mV/V or 3.5/1.75/0.875/0.35 mV/V; supply voltage: 21V..28V DC; weight: 51 g; environmental protection: IP40; The measuring amplifier GSV-11H can supply up to 4 parallel load cells (each with 350 bridge resistance) and is ideal for applications in the weighing technology. The low power consumption of only 38mA (plus output current) is a special feature.
