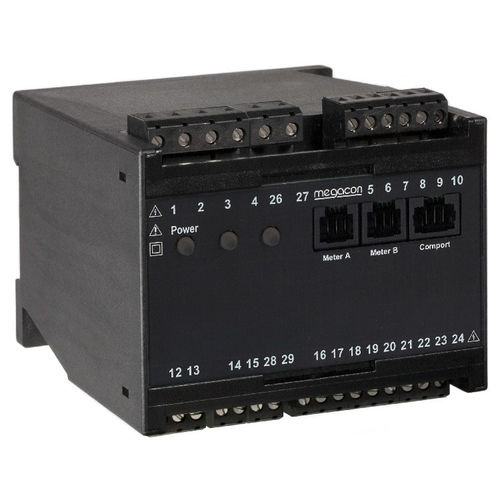

Multi-transducer measuring instrument MT-VA Series

AC voltageACfor electrical networks

MEASURING TRANSDUCER - AC VOLTAGE AND CURRENT • Combined AC Voltage (V) and AC Current (A) Transducer • Precision true RMS class 0,5 measurement, not affected by any waveform distortion • For Voltage measurement up to 500VAC • For use with 1A or 5A current transformers • Up to two individual very fast analogue output signals (<50mS), (optional) • DIN96 Slave Indicators with full scale (optional) The digitally controlled PMT-VA is a Precision transducer for AC Voltage (A) and AC Current (A). To be used in applications that require a very fast response, precision monitoring of voltage and ampere. The unit measures the voltage and current true r.m.s. value, and accuracy is independent of any wave form distortion. A green LED (ON) indicates the auxiliary supply presence. Two individual very fast analogue output signals proportional to AC Voltage (V) and AC Current (A) level. If an output is used for remote meter reading, we recommend 0-1mA for the slave indicator. It also includes an additional RJ12 output for a DIN96 Slave Indicator (optional). The noise-immune mA output is isolated from both the C.T. and voltage inputs and auxiliary power. The unit take the auxiliary supply voltage from terminal 26 & 27. It can also be delivered with optional separate DC auxiliary voltage (terminal 26 & 27), but that must be specified when ordering.
