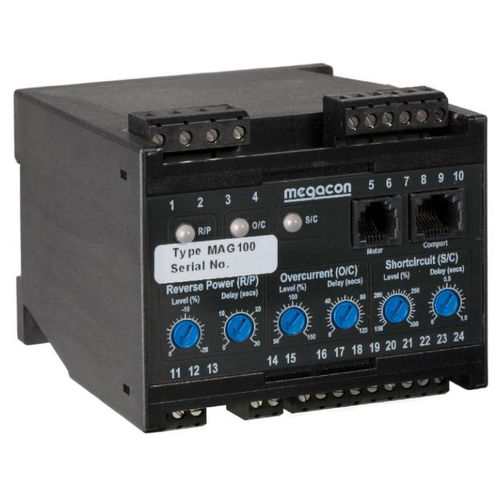

MAG10x - UNIVERSAL GENERATOR / MOTOR PROTECTIVE GUARD All-in-one unit combining Reverse Power, Overload, Over Current and Short Circuit functions "Predictor" early action feature One common alarm output eases installation "Pathfinder" function (Over Current and Short Circuit) One fast response analogue output (<50mS) Optional Slave Indicator Application The digitally controlled MAG10x generator guard combines Reverse Power (R/P), Overload (O/L), Over Current (O/C) and Short Circuit protection (S/C) in one unit. Features depend on selected model. Available for 3-phase 3-wire (2W3) and 4-wire (3W4) systems. Normally the auxiliary voltage is supplied from the monitored voltage input. Use step-down transformer for input voltage higher then 460VAC. Relay operation depends on the selected model. Only three functions are available in each unit. Other combinations are available on request. A trip timer will reset if the fault is removed during count-down. Remote alarm reset input. Fixed hysteresis prevents relay "chatter".
