Generator set synchronization controller MCE105D series

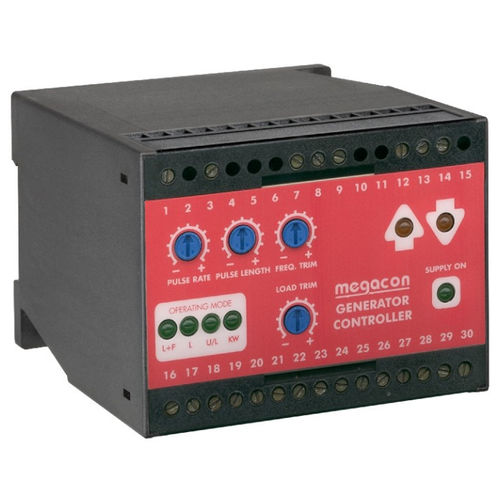

MCE105D - GENERATOR CONTROLLER Synchonising mode Loadsharing mode Frequency mode Soft unload control The MCE105D provides volt free raise/lower signals to control the speed of the prime mover of a generator. The raise/lower outputs will provide a constant output until they reach 95% of their target speed and then will change to a pulsed output. These control signals are produced depending upon the operating status of the controller. For detailed information on use of this controller, refer to Megacon technical publication. The MCE105D has five operating modes: Synchronising Control Monitors an analogue input from KSQ105 synchroniser. Load and Frequency Maintains a frequency set within the unit and will load share with any other MCE105D within the system. Load only Used when synchronised to the mains (infinite bus). Unload Reduces the speed of the prime mover until zero kilowatts is detected. Fixed kilowatt Controls the speed of the prime mover to match a kilowatt output relative to a value set by an external potentiometer.
