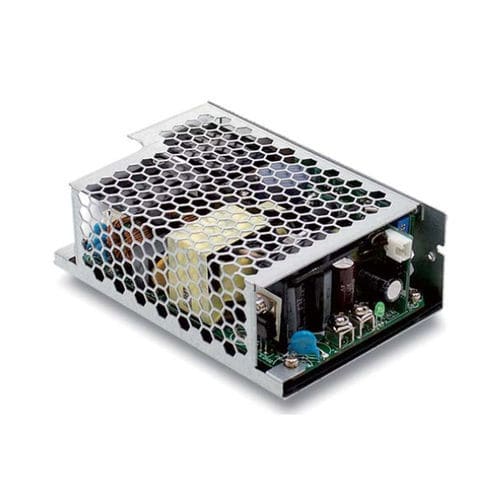

AC/DC power supply RPS-300 series
single-outputswitchingwith short-circuit protection

AC/DC power supply - RPS-300 series - Mean Well - single-output / switching / with short-circuit protection
AC/DC power supply - RPS-300 series - Mean Well - single-output / switching / with short-circuit protection
AC/DC power supply - RPS-300 series - Mean Well - single-output / switching / with short-circuit protection - image - 2
AC/DC power supply - RPS-300 series - Mean Well - single-output / switching / with short-circuit protection - image - 3
AC/DC power supply - RPS-300 series - Mean Well - single-output / switching / with short-circuit protection - image - 4
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Technology
switching
Protection
with short-circuit protection, with overload protection
Certifications
CE, TUV
Features
compact, open frame
Applications
for medical applications
Input voltage

Max.: 370 V

Min.: 90 V

Output voltage

12 V, 15 V, 24 V, 48 V

Current

Max.: 25 A

Min.: 0 A

Power

200 W, 200.2 W, 300 W

Description

RPS-300 is a 300W highly reliable green PCB type medical power supply with a high power density on the 5” by 3” footprint. It accepts 90-264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 93% and the extremely low no load power consumption is down below 0.5W. The extremely low leakage current is less than 1 50 AA. In addition, it conforms to international medical regulations (2*MOPP) and EMC BS EN/EN55011, perfectly fitting ail kinds of BF rated “patient contact” medical system equipment. RPS-300 seriesalso offers the enclosed style model (RPS-300-C).
