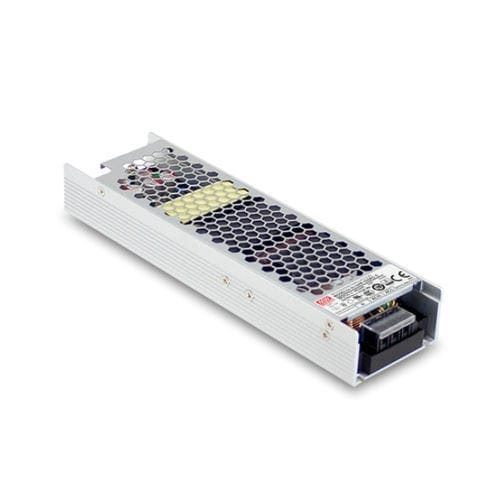

AC/DC power supply UHP-350 series
single-outputswitchingwith short-circuit protection

Add to favorites

Compare this product

Characteristics

Type

AC/DC

Output

single-output

Technology

switching

Protection

with short-circuit protection, with overload protection

Mounting

built-in

Certifications

CE, TUV

Features

low-profile

Applications

for industrial applications, for telecommunications equipment, electronic equipment, for automation, for electrical networks

Other characteristics

with power factor correction (PFC), redundant

Input voltage

Max.: 264 V

Min.: 90 V

Output voltage

Max.: 55 V

Min.: 3.3 V

Current

Max.: 60 A

Min.: 6.3 A

Power

Max.: 350.4 W

Min.: 198 W

Description

UHP-350 sériés is a 350W single-output slim type power supply with 31 mm of low profile design. Adopting the full range 90-264VAC input, the entire sériés provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V,48V and 55V. In addition to the high efficiency up to 94%, that the whole sériés operatesfrom-30°C ~ 70°C under air convection without fan. UHP-350 has the complété protection functions and 5G anti-vibration capability;It is complied with the international safety régulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1, UL 62368-1 and GB 4943.1 . UHP-350 seriesserves as a high performance power supply solution for various industrial applications. Features Withstand 300VAC surge input for 5 seconds -30~+70°C working température DC OK active signal and redundant function(option) Operating altitude up to 5000 meter (Note.5) LED indicator for power on ■ Applications • Household appliances • LED display application • Power Source Equipment for PoE(55V model)
