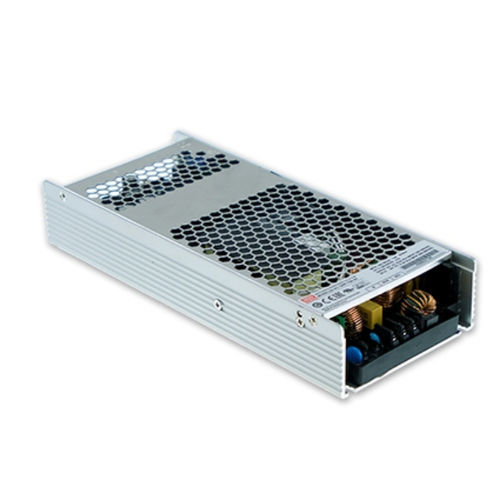

AC/DC power supply UHP-750 series
with short-circuit protectionwith overload protectionbuilt-in

Add to favorites

Compare this product

Characteristics

Type

AC/DC

Protection

with short-circuit protection, with overload protection

Mounting

built-in

Certifications

CE, TUV

Features

low-profile

Applications

for industrial applications, for telecommunications equipment, electronic equipment, for electrical networks

Other characteristics

with power factor correction (PFC), redundant

Input voltage

Max.: 264 V

Min.: 90 V

Output voltage

12 V, 24 V, 36 V, 48 V

Current

15.7 A, 20.9 A, 31.3 A, 60 A

Power

720 W, 751.2 W, 752.4 W, 753.6 W

Description

UHP-750 series is a 750Wsingle-outputslim type power supply with 41 mm oflow profile design. Adopting the full range 90-264VAC input, the entire sériés provides an output voltage line of 12V, 24V,36V and 48V. In addition to the high efficiency up to 95%, that the whole sériés opérâtes from -30°C ~ 70°C under air convection without fan. UHP-750 h as the complété protection fu notions and 5 G anti-vibration capability; It is complied with the international safety régulations such as TUV BS EN/EN62368-1 and UL62368-1. UHP-750 sériés serves as a high performance power supply solution for various industrial applications. Features Fanless and conduction-cooled design Withstand 300VAC surge input for 5 seconds -30~+70°C working température DC OK relay contact Operating altitude up to 5000 meter (Note.6) LED indicator for power on ■ Applications • Household appliances • Power Sourcing Equipment of PoE
