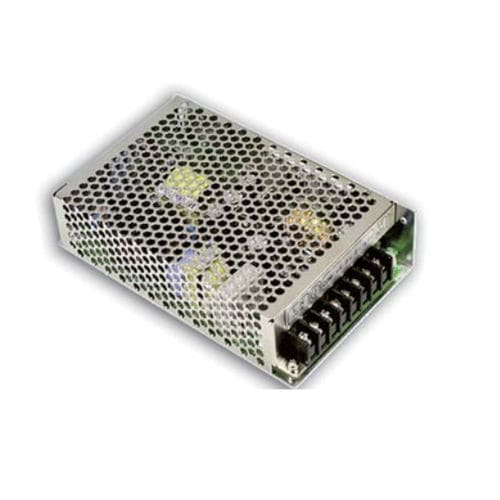

AC/DC power supply RT-85 seriestriple-outputswitchingwith short-circuit protection
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- triple-output
- Technology
- switching
- Protection
- with short-circuit protection, with overload protection
- Mounting
- plug-in
- Certifications
- CE, TUV
- Input voltage
Max.: 373 V
Min.: 88 V
- Output voltage
Max.: 24 V
Min.: -15 V
- Current
Max.: 10 A
Min.: 0 A
- Power
84.5 W, 87.5 W, 88 W, 90 W
Description
'Universal AC input / Full range
'Cooling by free air convection
'LED indicator for power on
• 100% full load burn-in test
'Ali using 105°C long life electrolytic capacitors
•Withstand 300VAC surge input for 5 second
•High operating température up to 70°C
•Withstand 5G vibration test
•High efficiency, long life and high reliability
Catalogs
No catalogs are available for this product.
See all of Mean Well‘s catalogsOther Mean Well products
