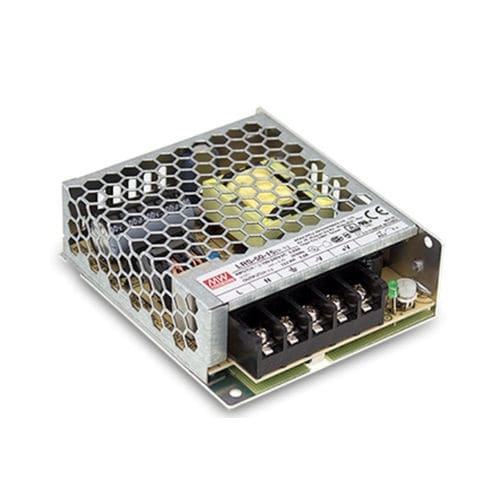

AC/DC power supply LRS-50 seriessingle-outputswitchingwith short-circuit protection
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- single-output
- Technology
- switching
- Protection
- with short-circuit protection, with overload protection
- Mounting
- built-in
- Certifications
- CE, TUV
- Features
- 1U, low-profile
- Applications
- for industrial applications, for telecommunications equipment, electronic equipment, for electrical networks
- Input voltage
Min.: 85 V
Max.: 373 V
- Output voltage
Min.: 3.3 V
Max.: 48 V
- Current
Min.: 0 A
Max.: 10 A
- Power
Min.: 33 W
Max.: 52.8 W
Description
LRS-50 series is a 50W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85-264VAC input, the entire sériés provides an output voltage line of 3.3V, 5V, 12V, 15V, 24V, 36V and 48V.
In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-50 that the whole sériés opérâtes from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.2W), it allows the end System to easily meet the worldwide energy requirement. LRS-50 has the complété protection functions and 5G anti- vibration capability; it is complied with the international safety régulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1 ,BS EN/EN61 558-1/-2-16, UL62368-1 and GB 4943.1. LRS-50 sériés serves as a high price-to-performance power supply solution for various industrial applications.
