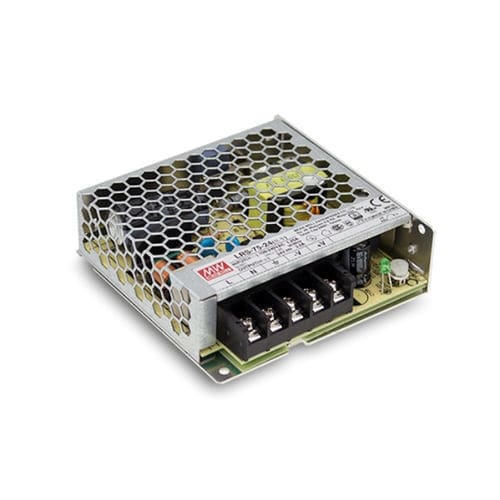

AC/DC power supply LRS-75 series
single-outputswitchingwith short-circuit protection

AC/DC power supply - LRS-75 series - Mean Well - single-output / switching / with short-circuit protection
AC/DC power supply - LRS-75 series - Mean Well - single-output / switching / with short-circuit protection
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Technology
switching
Protection
with short-circuit protection, with overload protection
Certifications
CE, TUV
Features
1U, low-profile
Applications
for industrial applications, for telecommunications equipment, electronic equipment, for electrical networks
Input voltage

Min.: 85 V

Max.: 373 V

Output voltage

Min.: 5 V

Max.: 48 V

Current

Min.: 0 A

Max.: 14 A

Power

70 W, 72 W, 75 W, 75.6 W, 76.8 W

Description

LRS-75 seriesis a 75W single-output enclosed type power supply with 30mm of low profile design. Adopting the full range 85-264VAC input, the entire sériés provides an output voltage line of 5V, 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 91.5%, the design of metallic mesh case enhances the heat dissipation of LRS-75 that the whole sériés opérâtes from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption(lessthan 0.3W), it allows the end system to easily meet the worldwide energy requirement. LRS-75 has the complété protection functions and 5G anti- vibration capability; it is complied with the international safety régulations such as TUV BS EN/EN62368-1, BS EN/EN60335-1 ,BS EN/EN61558-1/-2-16, UL62368-1 and GB 4943.1. LRS-75 sériés serves as a high p rice - to-performance power supply solution for va ri ous indu striai applications.
