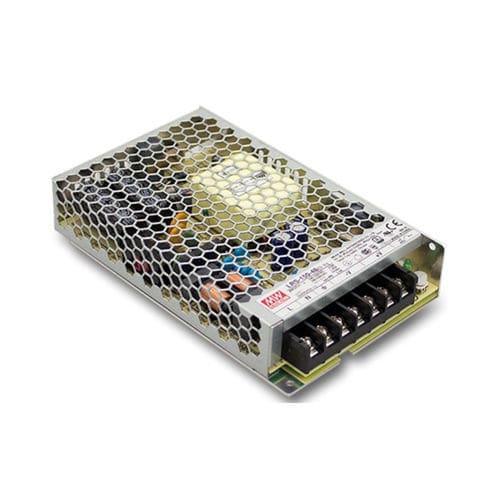

AC/DC power supply LRS-150 series
single-outputswitchingwith short-circuit protection

AC/DC power supply - LRS-150 series - Mean Well - single-output / switching / with short-circuit protection
AC/DC power supply - LRS-150 series - Mean Well - single-output / switching / with short-circuit protection
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Technology
switching
Protection
with short-circuit protection, with overload protection
Certifications
CE, TUV
Applications
for industrial applications, for telecommunications equipment, electronic equipment, for electrical networks
Input voltage

Min.: 85 V

Max.: 370 V

Output voltage

12 V, 15 V, 24 V, 36 V, 48 V

Current

3.3 A, 4.3 A, 6.5 A, 10 A, 12.5 A

Power

150 W, 154.8 W, 156 W

Description

LRS-150 seriesis a 150W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC(selectable by switch), the entire sériés provides an output voltage line of 12V, 15V, 24V, 36V and 48V. In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-1 50 that the whole sériés opérâtes from -30°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.5W), it allows the end System to easily meet the worldwide energy requirement. LRS-150 has the complété protection functions and 5G anti- vibration capability; it is complied with the international safety régulations suchasTUVBS EN/EN 62368-1, BS EN/EN60335-1 ,BS EN/EN61558-1/-2-1 6, UL62368-1 and GB 4943.1. LRS-1 50 sériés serves as a high price-to-performance power supply solution for va rious indu striai applications.
