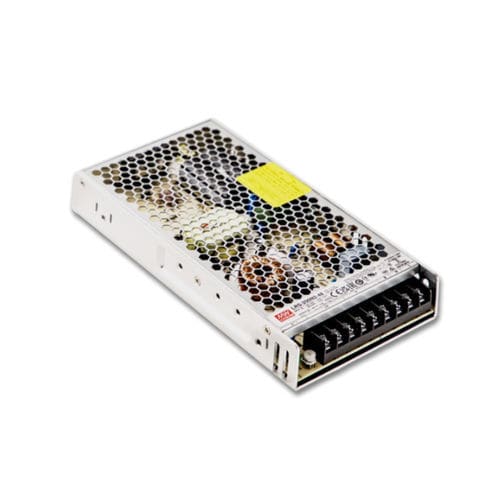

AC/DC power supply LRS-200N2 series
single-outputswitchingwith short-circuit protection

Add to favorites

Compare this product

Characteristics

Type

AC/DC

Output

single-output

Technology

switching

Protection

with short-circuit protection, with overload protection

Certifications

CE, TUV

Features

1U, low-profile, ultra-compact

Applications

for industrial applications, for telecommunications equipment, for electrical networks

Input voltage

Min.: 90 V

Max.: 370 V

Output voltage

12 V, 24 V, 36 V, 48 V

Current

4.4 A, 5.9 A, 8.8 A, 17 A

Power

204 W, 211.2 W, 212.4 W

Description

LRS-200N2 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire sériés provides an output voltage line of 12V, 24V, 36V and 48V. In addition to the high efficiency up to 90%, the design of metallic mesh case enhances the heat dissipation of LRS-200N2 that the whole sériés opérâtes from -25°C through 70°C under air convection without a fan. Delivering an extremely low no load power consumption (less than 0.75W), it allows the end System to easily meet the worldwide energy requirement. LRS-200N2 has the complété protection functions and 5G anti-vibration capability; it is complied with the international safety régulations such as IEC/UL 62368-1. LRS-200N2 sériés serves as a high price-to-performance power supply solution for various industrial applications. Moreover, LRS- 200N2 can provide 200% short-duration peak power for motor applications and electromechanical loads requiring much higher power during start-up.
