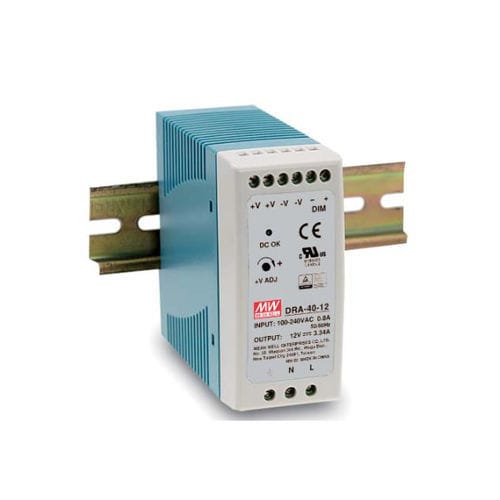

AC/DC power supply DRA-40 series
single-outputadjustableswitching

AC/DC power supply - DRA-40 series - Mean Well - single-output / adjustable / switching

Add to favorites

Compare this product

Characteristics

Type

AC/DC

Output

single-output, adjustable

Technology

switching, PWM

Protection

with short-circuit protection, with overload protection

Mounting

DIN rail

Certifications

CE, TUV

Input voltage

Max.: 370 V

Min.: 90 V

Output voltage

12 V, 24 V

Current

Max.: 3.34 A

Min.: 0 A

Power

40.08 W, 40.8 W

Description

DRA-40 is one 40W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1 ~1 OVdc, PWM signal or résistance. DRA-40 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm that it is well suited for the installation in a limited spacing. DRA-40 accepts the uni versai AC input between 90VAC and 264VAC; the efficiency is up to 87% that the entire sériés can operate, under free air convection, from -30°C through 70°C.

Catalogs

No catalogs are available for this product.

See all of Mean Well‘s catalogs
