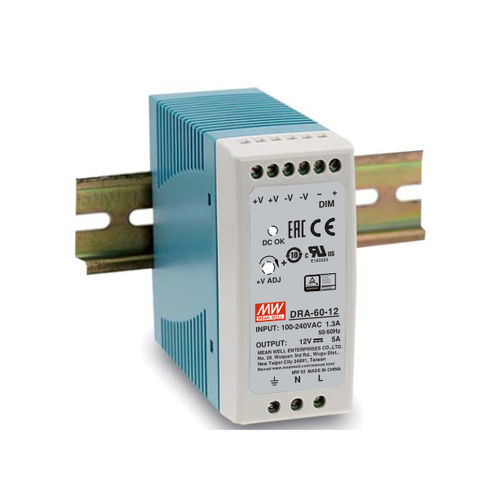

AC/DC power supply DRA-60 series
single-outputadjustablePWM

Add to favorites

Compare this product

Characteristics

Type

AC/DC

Output

single-output, adjustable

Technology

PWM

Protection

with short-circuit protection, with overload protection

Mounting

DIN rail

Input voltage

Max.: 370 V

Min.: 90 V

Output voltage

12 V, 24 V

Current

2.5 A, 5 A

Power

60 W

Description

DRA-60 is one 60W AC/DC DIN rail power supply, featuring the adjustable output current. Users are able to easily change the constant output current level, via 1 ~10 Vdc, PWM signal or résistance. DRA-60 can be mounted on DIN rail TS-35/7.5 or 15; in addition, the width of the unit is only 40mm that it is well suited for the installation in a limited spacing. DRA-60 accepts the universal AC input between 90VAC and 264VAC; the efficiency is up to 87% that the entire sériés can operate, under free air convection, from -30°C through 70°C.
