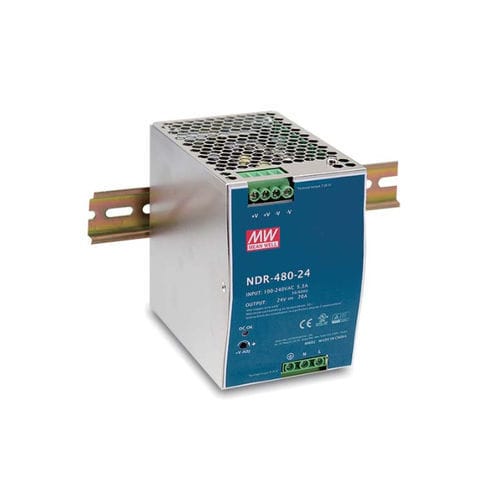

AC/DC power supply NDR-480 series
single-outputwith short-circuit protectionwith overload protection

AC/DC power supply - NDR-480 series - Mean Well - single-output / with short-circuit protection / with overload protection

Add to favorites

Compare this product

Characteristics

Type

AC/DC

Output

single-output

Protection

with short-circuit protection, with overload protection

Mounting

DIN rail

Certifications

CE, TUV

Input voltage

Max.: 370 V

Min.: 90 V

Output voltage

24 V, 48 V

Current

Max.: 20 A

Min.: 0 A

Power

480 W

Description

NDR-480 is one economical slim 480W Din rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 85.5mm in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 90VACto264VAC and conforms to BS EN/EN61000-3-2, the norm the European Union régulâtes for harmonie current. NDR-480 is designed with metal housing that enhances the unit's power dissipation. With working efficiency up to 92.5%, the entire sériés can operate at the ambient temperature between -20’C and 70°C under air convection. It is equipped with constant current mode for over-load protection, fitting various inductive or capacitive applications. The complete protection functions and relevant certificates for industrial control apparatus (UL508, TUV BS EN/EN62368-1, and etc.) make NDR-480 a very compétitive power supply solution for industrial applications.
