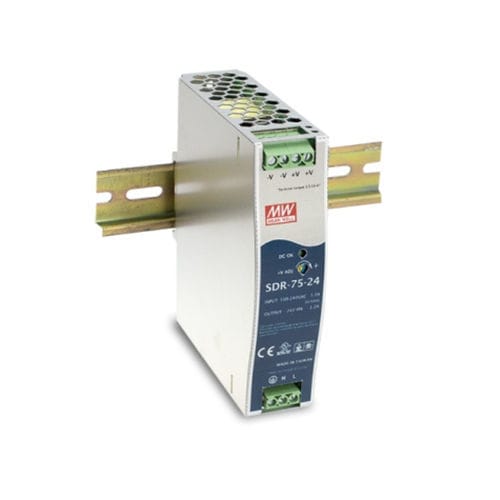

AC/DC power supply SDR-75 series
single-outputwith short-circuit protectionwith overload protection

AC/DC power supply - SDR-75 series - Mean Well - single-output / with short-circuit protection / with overload protection
AC/DC power supply - SDR-75 series - Mean Well - single-output / with short-circuit protection / with overload protection
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Protection
with short-circuit protection, with overload protection
Mounting
DIN rail
Certifications
CE, TUV
Applications
for industrial applications
Other characteristics
with power factor correction (PFC)
Input voltage

Max.: 370 V

Min.: 88 V

Output voltage

12 V, 24 V, 48 V

Current

Max.: 6.3 A

Min.: 0 A

Power

75.6 W, 76.8 W

Description

.High efficiency 90% and low power dissipation .150% peak load capability .Cooling by free air convection .UL 508 (industrial control equipment) approved .BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level .100% full load burn-in test
