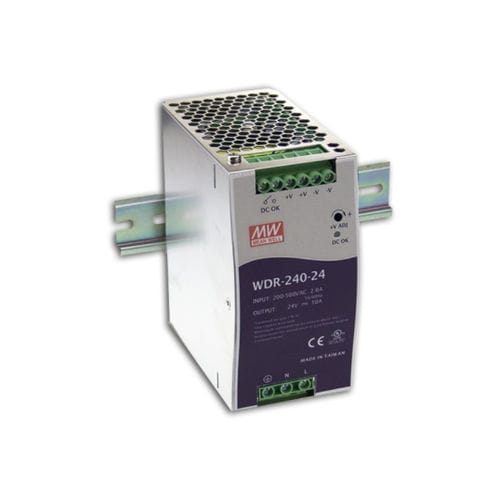

AC/DC power supply WDR-240 series
single-outputsingle-phasetwo-phase

AC/DC power supply - WDR-240 series - Mean Well - single-output / single-phase / two-phase
AC/DC power supply - WDR-240 series - Mean Well - single-output / single-phase / two-phase
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Network
single-phase, two-phase
Protection
with short-circuit protection, with overload protection
Mounting
DIN rail, built-in
Certifications
CE, TUV
Applications
for industrial applications
Other characteristics
wide input range, with power factor correction (PFC)
Input voltage

Max.: 780 V

Min.: 180 V

Output voltage

24 V, 48 V

Current

5 A, 10 A

Description

High efficiency 91% and low power dissipation Cooling by free air convection BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level Built-in DC OK relay contact
