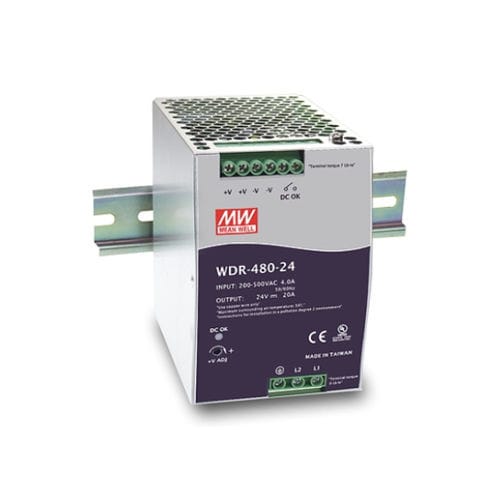

AC/DC power supply WDR-480 seriessingle-outputsingle-phasetwo-phase
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Output
- single-output
- Network
- single-phase, two-phase
- Protection
- with short-circuit protection, with overload protection
- Mounting
- DIN rail, built-in
- Certifications
- CE, TUV
- Other characteristics
- wide input range, with power factor correction (PFC)
- Input voltage
Min.: 180 V
Max.: 780 V
- Output voltage
24 V, 48 V
- Current
Min.: 0 A
Max.: 20 A
- Power
480 W
Description
High efficiency 93% and low power dissipation
Cooling by free air convection
BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
100% full load burn-in test
Catalogs
No catalogs are available for this product.
See all of Mean Well‘s catalogsOther Mean Well products
AC/DC
