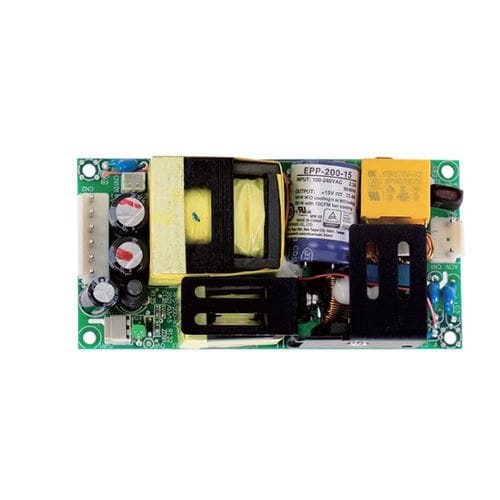

AC/DC power supply EPP-200 series
single-outputswitchingwith short-circuit protection

AC/DC power supply - EPP-200 series - Mean Well - single-output / switching / with short-circuit protection
AC/DC power supply - EPP-200 series - Mean Well - single-output / switching / with short-circuit protection
AC/DC power supply - EPP-200 series - Mean Well - single-output / switching / with short-circuit protection - image - 2
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Technology
switching
Protection
with short-circuit protection, with overload protection
Certifications
CE, TUV
Features
open frame, 2"x4" format
Applications
for industrial applications, electronic equipment
Input voltage

Min.: 80 V

Max.: 370 V

Output voltage

12 V, 15 V, 24 V, 27 V, 48 V

Current

Min.: 3 A

Max.: 16.7 A

Power

Min.: 140.4 W

Max.: 201.6 W

Description

EPP-200 is a 200W highly reliable green PCB type power supply with a high power density (21.9W/in) on the 4" by 2” footprint. It accepts 80-264VAC input and offers various output voltages between 12V and 48V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-200 is able to be used for both Class I (with FG) and Class II (no FG) System design. EPP-200 is equipped with complété protection functions; it is complied with the international safety régulations such as TUV BS EN/EN62368-1, UL62368-1 and IEC62368-1. EPP-200 sériés serves as a high price-to-performance power supply solution for various industrial applications.
