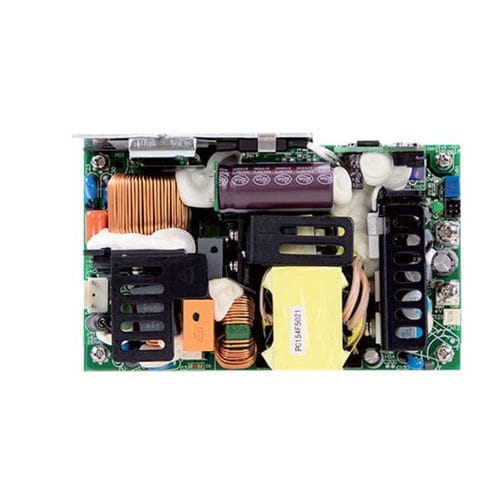

AC/DC power supply EPP-500 series
single-outputwith short-circuit protectionwith overload protection

AC/DC power supply - EPP-500 series - Mean Well - single-output / with short-circuit protection / with overload protection
AC/DC power supply - EPP-500 series - Mean Well - single-output / with short-circuit protection / with overload protection
AC/DC power supply - EPP-500 series - Mean Well - single-output / with short-circuit protection / with overload protection - image - 2
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Protection
with short-circuit protection, with overload protection
Certifications
CE, TUV
Features
compact, open frame
Applications
for industrial applications, for telecommunications equipment, electronic equipment, for automation, for electrical networks
Input voltage

Min.: 80 V

Max.: 370 V

Output voltage

Min.: 12 V

Max.: 54 V

Current

Min.: 5.93 A

Max.: 41.6 A

Power

Min.: 319.5 W

Max.: 500 W

Description

EPP-500 is a 500W highly reliable green PCB type power supply with a high power density on the 5” by 3" footprint. It accepts 80~264VAC input and offers various output voltages between 12V and 54V. The working efficiency is up to 94% and the extremely low no load power consumption is down below 0.5W. EPP-500 is able to be used for both Class I (with FG) and Class II (no FG) system design. EPP-500 has complete protection functions; it is complied with the international safety régulations such as TUV BS EN/EN62368-1 ,TUV BS EN/EN60335-1 ,UL62368-1 and IEC62368-1. EPP-500 sériés serves as a high price-to-performance power supply solution for various industrial applications.
