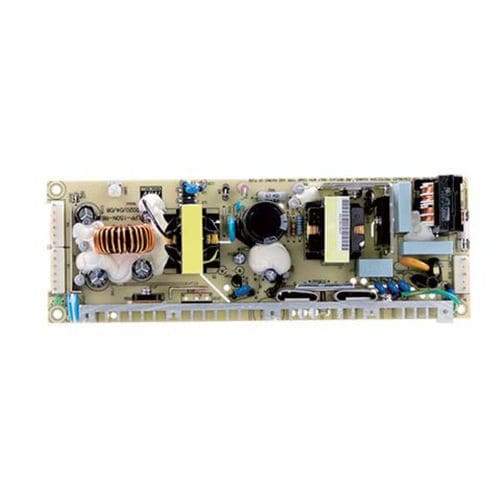

AC/DC power supply LPP-150 series
single-outputswitchingPWM

AC/DC power supply - LPP-150 series - Mean Well - single-output / switching / PWM
AC/DC power supply - LPP-150 series - Mean Well - single-output / switching / PWM
AC/DC power supply - LPP-150 series - Mean Well - single-output / switching / PWM - image - 2
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Technology
switching, PWM
Protection
with short-circuit protection, with overload protection
Mounting
built-in
Certifications
CE, TUV
Features
open frame
Applications
for industrial applications
Input voltage

Min.: 85 V

Max.: 370 V

Output voltage

Min.: 3.3 V

Max.: 48 V

Current

Min.: 0 A

Max.: 30 A

Power

99 W, 150 W, 151.2 W, 153.6 W

Description

Universal AC input / Full range Protections:Over temperature(option) Cooling by free air convection 100% full load burn-in test Fixed switching frequency at PFC:67KHz PWM:134KHz
