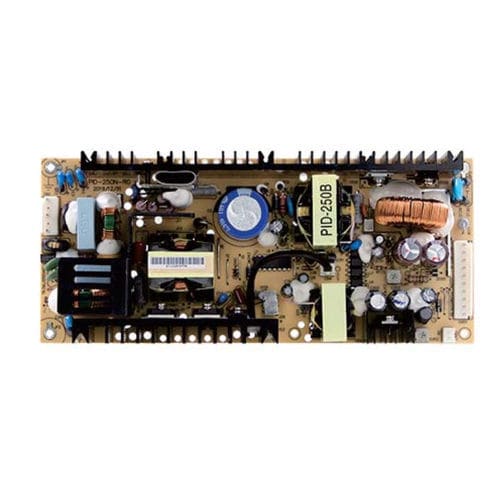

AC/DC power supply PID-250 series
dual-outputwith short-circuit protectionwith overload protection

AC/DC power supply - PID-250 series - Mean Well - dual-output / with short-circuit protection / with overload protection
AC/DC power supply - PID-250 series - Mean Well - dual-output / with short-circuit protection / with overload protection
AC/DC power supply - PID-250 series - Mean Well - dual-output / with short-circuit protection / with overload protection - image - 2
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
dual-output
Protection
with short-circuit protection, with overload protection
Certifications
CE
Features
open frame
Applications
for industrial applications
Other characteristics
with power factor correction (PFC), isolated
Input voltage

Min.: 90 V

Max.: 370 V

Output voltage

5 V, 12 V, 24 V, 36 V, 48 V

Current

Min.: 0 A

Max.: 15 A

Power

205 W, 250.6 W, 251.8 W

Description

Universal AC input / Full range Isolated output & GND for CH1 ,CH2 Remote control for CH1 Peak load 170% for CH1 within 10 sec. Cooling by free air convection 100% full load burn-in test
