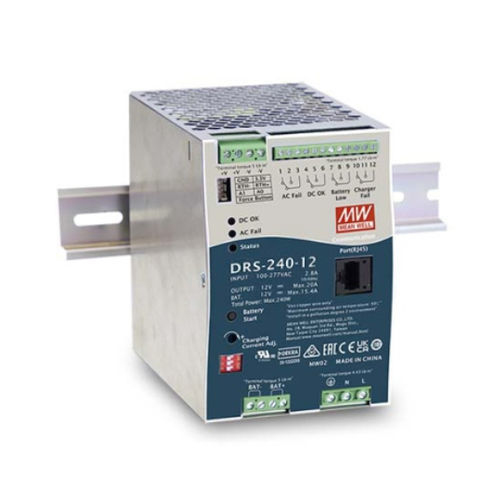

AC/DC power supply DRS-240 series
single-outputwith short-circuit protectionwith overload protection

AC/DC power supply - DRS-240 series - Mean Well - single-output / with short-circuit protection / with overload protection
AC/DC power supply - DRS-240 series - Mean Well - single-output / with short-circuit protection / with overload protection
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
single-output
Protection
with short-circuit protection, with overload protection
Mounting
DIN rail
Certifications
CE, TUV
Applications
for industrial applications, for telecommunications equipment, for automation
Input voltage

Max.: 431 V

Min.: 90 V

Output voltage

12 V, 24 V, 36 V, 48 V

Current

Max.: 20 A

Min.: 0 A

Power

240 W

Description

DRS-240 is a 240W AC/DC DIN rail type security power supply series . In addition to the primary output, there is an additional charger circuit that will automatically adjust charge current depending on the primary output current. DRS-240 accepts the universal input between 90VAC and 305VAC, and supports output 12VDC, 24VDC, 36VDC, and 48VDC nominal Systems. With high efficiency up to 92%, it can operate with free air convection cooling under -30°C through 70°Cambient température. In addition to the key protection features such as overload protection, over voltage protection, battery low voltage disconnect, and battery reverse polarity protection, the DRS-240 also provides Form-C contacts and LED indicator alarm signais for AC-fail, battery low, charger circuit fail, and DC-OK to allow easy intégration into security Systems that comply with local alarm codes.
