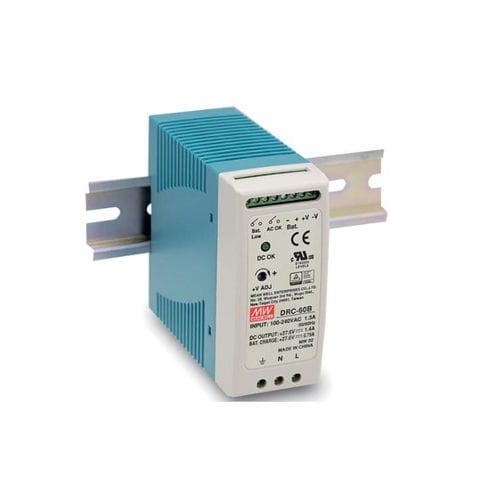

AC/DC power supply DRC-60 series

single-outputwith short-circuit protectionwith overload protection

DRC-60 is a 60W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access Systems require. DRC-60 accepts the universal input between 90VAC and 264VAC, and supplies 13.8VDCand27.6VDCatoutput,respectively.Withtheefficiencyupto88%,itcan ope rate with air convection cooling under -30°C through 70°C. In addition to the key protection features such as overload protection, over voltage protection, battery low eut off, and battery reverse polarity protection (by fuse), the alarm signal for AC OK and battery low signaling is provided, via relay contact output, to facilitate the system design.
