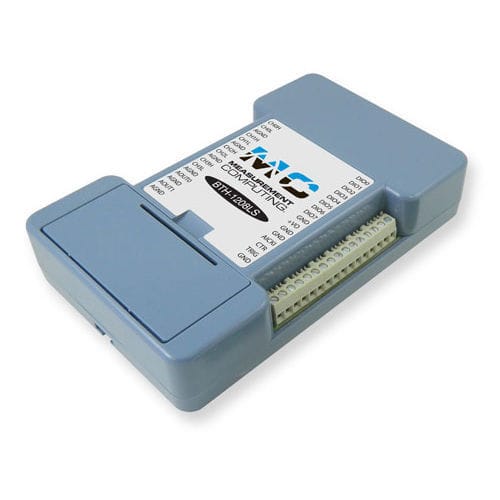

Power data acquisition module BTH-1208LS

multi-channelbenchtopanalog input

The BTH-1208LS Series wireless data acquisition (DAQ) devices provide Bluetooth communication when paired with a compatible Windows or Android-based host device. Features include analog I/O, digital I/O, and event counter input over a wireless Bluetooth or physical USB connection. NOTE: Due to regulatory requirements, the BTH-1208LS and BTH-1208LS-OEM can only be sold in the United States, Canada, China, EU, Australia, Japan, and New Zealand. Please contact your distributor for countries outside these regions. • Eight single-ended (SE) orfour differential (DIFF) analoginputs • Maximum Bluetooth® samplerates of 47 kS/s (BURSTIO) or1 kS/s (hardware paced) overBluetooth • Maximum USB sample rates of47 kS/s (hardware paced) • Two 12-bit analog outputs • Eight digital I/O and one 32-bitcounter input • Battery and USB power options The BTH-1208LS offers Bluetooth communication in a multifunction DAQ device.When paired with a compatible Windows-based or Android-based host device, theBTH-1208LS offers short-range wireless communication of acquired data.The BTH-1208LS offers analog I/O, digital I/O, and event counter input over eithera wireless Bluetooth or physical USB connection. The BTH-1208LS can operate wirelesslyas a Bluetooth device or as a physicallyconnected USB device.When operating as a Bluetooth device,the BTH-1208LS must be paired withthe host device before it can wirelesslycommunicate acquired data. Pairing isa one-time procedure that establishes abond with the host device.The BTH-1208LS can transmit dataup to 10 meters when operating as aBluetooth device.
