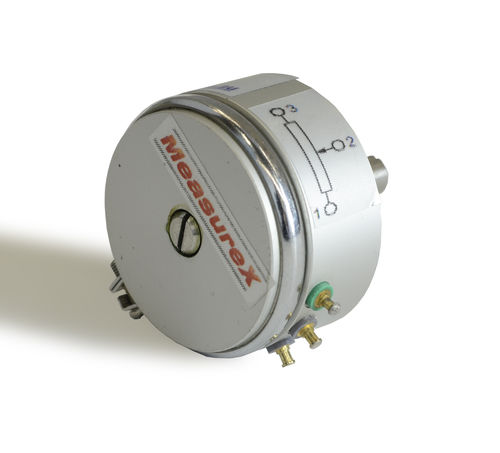

Absolute rotary encoder MTP41

potentiometervoltage outputcompact

MTP41 is a compact dust proof rotary potentiometer with excellent accuracy and durability for industrial angle measurement. Thanks to conductive plastic resistance track technology and multi-fingered precision metal wipers, MTP41 brings high accuracy low noise output with life time of more than 50 million cycles. Due to its high resistance to abrasion, the sensors are particularly suitable for measurements and quality assurance in ongoing production, where a long service life and large number of rotations are required. In addition, it is possible to obtain 4-20mA output with an external converter. MTP41 is available for measurement range of 90°, 180° and 345° angular position sensor with 360° mechanical rotation angle. While the standard accuracy is 0.5% FS, you can optionally get an accuracy of 0.1% FS.
