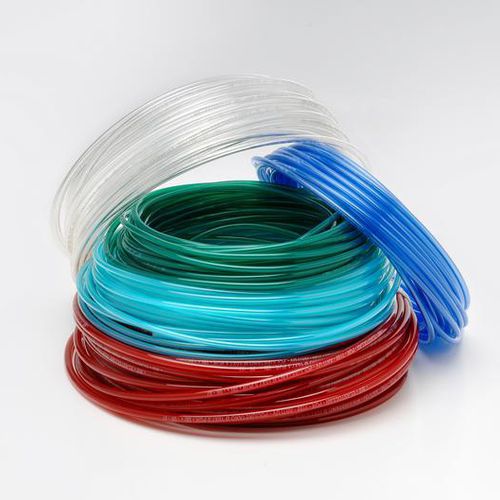

Compressed air hose 198TEA seriespolyurethanefor vacuumUV-resistant
Add to favorites
Compare this product
Characteristics
- Use
- for compressed air
- Material
- polyurethane
- Applications
- for vacuum
- Other characteristics
- UV-resistant
- Inner diameter
Min.: 2.5 mm
(0.098 in)Max.: 9 mm
(0.354 in)- Outer diameter
Min.: 4 mm
(0.157 in)Max.: 12 mm
(0.472 in)- Pressure
Min.: 6 bar
(87.023 psi)Max.: 8 bar
(116.03 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 60 °C
(140 °F)
Description
FEATURES
Light-stable polyether-based Polyurethane. The peculiarity of this product is the ability to reject the UV-rays. Has a good hydrolytic resistance. We produce a wide range of hoses in 5 different transparent colors. Hardness 52 shoreD.
TEMPERATURE
Products of the series 198TEA can be used in a temperature range from -40°C to 60°C.
TOLLERANCES
± 0,07 on wall thickness
± 0,07 on oØ up to Ø 12 mm
± 0,1 on oØ from Ø 14 mm
± 0,5% on weight
APPLICATIONS
Industrial automation; Vacuum equipment; Machine tool; Robotics; Low temp below 10; Hydrolysis resistance;
