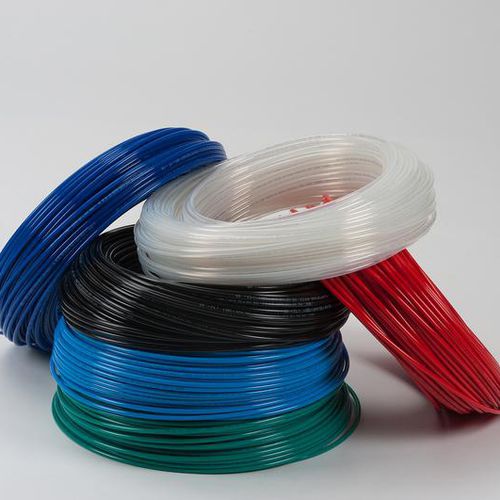

Compressed air hose EHF series

polyurethanepolyamidePA12

FEATURES Triple layer hose with two layers, of high quality Polyamide 12 PHL, and one middle layer of special, ether-based Polyurethane modified, to chemically bond without, the use of additional adhesives., PA 12 Ether HF multi-layer hose, is a highly flexible hose studied, for pneumatic applications, highly, resistant to low-temperature, impact., In addition to chemical protection, the inner and outer layer of, Polyamide 12 protect the hose, also from degradation of the, combined effect of the sun’s rays, and the rain water performing a, good endurance to ageing (stabilized, to light, best performance, on black colored hoses when, used in sunlit areas and in close, proximity to high ultraviolet light, sources)., We manufacture a wide range of, linear and recoiled hoses in different, colors. TEMPERATURE Products of the series PA12EHF can be used in a temperature range from -40°C to 70°C. TOLLERANCES ± 0,05 on wall thickness, ± 0,05 on oØ up to Ø 12 mm, ± 0,10 on oØ from Ø 14 mm, ± 0,5% on weight APPLICATIONS Industrial automation;
