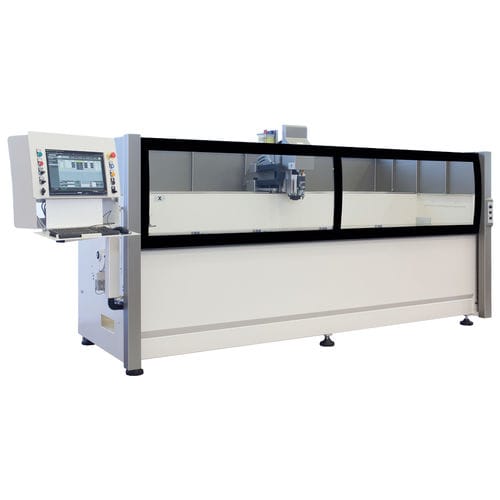

3/4-axis CNC machining center MC 319 AYDOverticalfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3/4-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum
- X travel
3,160 mm
(124.41 in)- Y travel
360 mm
(14.17 in)- Z travel
345 mm
(13.58 in)- Rotational speed
18,000 rpm
(113,097 rad.min-1)- Power
3.8 kW
(5.17 hp)
Description
3 AXIS CNC+ 1 AXIS PNEUMATICALLY MANAGED FLOOR-TYPE VERTICAL-SPINDLE MACHINING CENTRE
3 axis (X, Y, Z) controlled by CNC + 1 axis pneumatically managed.
Suitable for machining aluminium and PVC profiles.
The workpieces are fixed with 4 pneumatic clamps, sliding on the tilting beam; this beam has a ± 90 ° rotation range with pneumatic actuation.
Workable section: 250 x 170 mm (YxZ)
