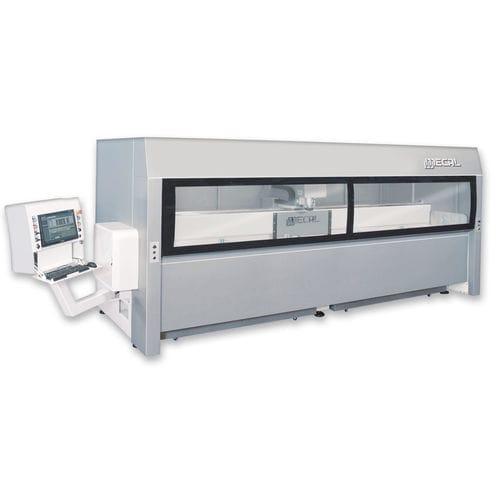

4-axis CNC machining center MC 305 KOSMOS TM MMIverticalfor aluminumfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum, for steel
- X travel
4,225 mm
(166.34 in)- Y travel
530 mm
(20.87 in)- Z travel
410 mm
(16.14 in)- Rotational speed
20,000 rpm
(125,664 rad.min-1)- Power
6 kW
(8.16 hp)
Description
4 AXIS CNC FLOOR-TYPE VERTICAL SPINDLE MACHINING CENTER.
MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
TM = Mobile Beam
Suitable for the machining of aluminum extruded profiles for residential architecture, and even for light steel shaped profiles.
4 axis (X, Y, Z, A) managed by CNC.
By means of dedicated tools it’s suitable for working on 5 sides of aluminium, PVC and steel sections.
The workpieces are fixed with 4 pneumatic clamps, sliding on the rocking beam. The beam can be positioned at any angle within ± 125°.
The rotation is directly managed by the control cycle
