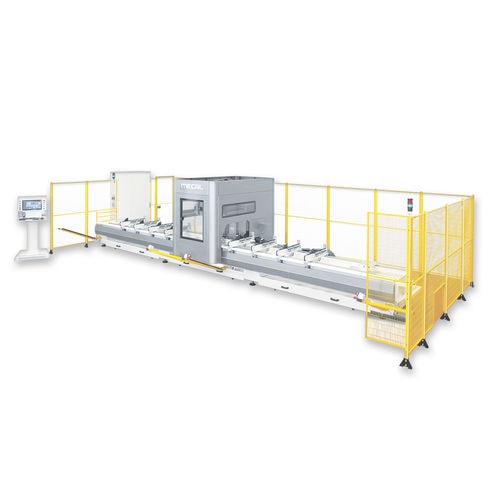

5-axis CNC machining center MC 304 ARIEL – 5 MDTverticalfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum
- X travel
7,500 mm, 9,500 mm, 11,500 mm
(295.28 in, 374.02 in, 452.76 in)- Y travel
1,400 mm
(55.12 in)- Z travel
700 mm
(27.56 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
10 kW
(13.6 hp)
Description
5 AXIS CNC FLOOR TYPE VERTICAL SPINDLE MACHINING CENTER
MDT means “Cutting Module”. It is a system to obtain multiple pieces derived from a single profile bar. The clamps used are equipped with independent drive. It is expected that each workpiece is held by at least two vices; once cut, the segment obtained is automatically moved along the longitudinal axis of the machine, up to reach a given position
Particularly suitable for working profiles for curtain walls of considerable size.
5 axis (X, Y, Z, C, A) managed by CNC.
VIDEO
