5-axis CNC machining center MC 302 GEOS – 5 MMI

verticalfor aluminumfor steel

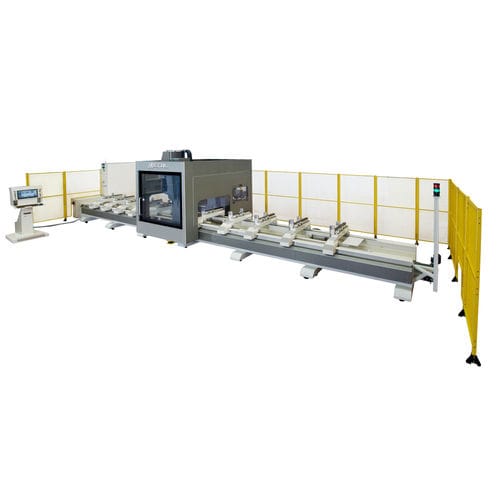

MC 302 GEOS – 5 MMI 5 AXIS CNC FLOOR TYPE VERTICAL SPINDLE MACHINING CENTER. 5 axis (X, Y, Z, C, A) managed by CNC. MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps. Suitable for milling, drilling, tapping and cutting on the 5 sides of aluminum, PVC, steel and light alloys profiles; thanks to the 5 axis interpolation, the machine is able to execute composite cuts. The X or longitudinal axis, the Y or transversal axis and the Z or vertical axis belong to the tool movement. They can be interpolated in linear and circular way on 3-dimension geometrical planes, belonging to X-Y-Z. The C axis can be turned and positioned on all angles within 440° (± 220°); the A axis can be tilted and positioned on all angles within 250° (± 125°).
