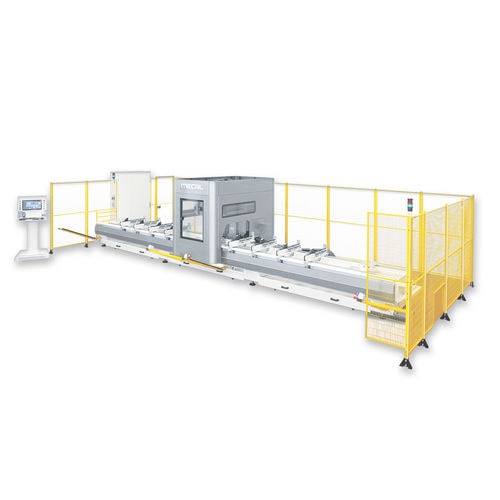

4-axis CNC machining center MC 304 ARIEL – 3 MD MMIverticalfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum
- X travel
7,400 mm, 9,400 mm, 11,400 mm
(291.34 in, 370.08 in, 448.82 in)- Y travel
1,460 mm
(57.48 in)- Z travel
620 mm
(24.41 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
8.5 kW
(11.56 hp)
Description
MC 304 ARIEL – 3 MD MMI
4 AXIS CNC FLOOR TYPE VERTICAL SPINDLE MACHINING CENTRE.
MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
MD is an acronym for Double Clamp. Each clamp is equipped with two slots each one separately regulated
Longitudinal stroke X = 7400/9400/11400 mm
4 axis (X, Y, Z, A) managed by CNC
Suitable for processing on ANY surfaces, generated by the rotation of the spindle axis ( side by side at Y axes) on the positions within 180° (± 90°).
With dedicated accessories it can work on five sides of the profile
