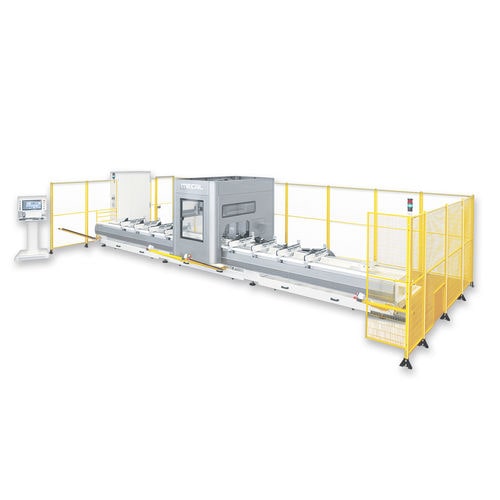

4-axis CNC machining center MC 304 ARIEL – 3 MMIverticalfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum
- X travel
7,400 mm, 9,400 mm, 11,400 mm
(291.34 in, 370.08 in, 448.82 in)- Y travel
1,460 mm
(57.48 in)- Z travel
620 mm
(24.41 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
8.5 kW
(11.56 hp)
Description
4 AXIS CNC FLOOR TYPE VERTICAL SPINDLE MACHINING CENTRE.
MMI = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic contemporary movement of the clamps.
Especially suitable for the machining of aluminium, PVC, steel and light alloys profiles of considerable size and weight, also for industrial applications.
4 axis (X, Y, Z, A) managed by CNC.
By means of dedicated tools it’s suitable for working on 5 sides of profiles.
Suitable for processing on ANY surfaces, generated by the rotation of the spindle axis (side by side at Y axes) on the positions within 180° (± 90°).
The strong base formed by tubulars guarantees the fundamental structural rigidity of the machine.
