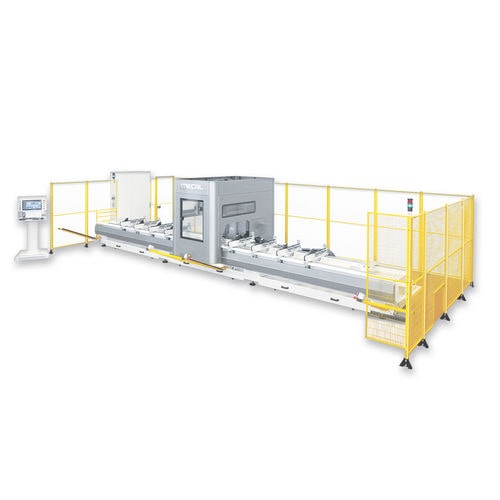

4-axis CNC machining center MC 304 ARIEL – 3 MDverticalfor aluminum
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum
- X travel
7,400 mm, 9,400 mm, 11,400 mm
(291.34 in, 370.08 in, 448.82 in)- Y travel
1,460 mm
(57.48 in)- Z travel
620 mm
(24.41 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
8.5 kW
(11.56 hp)
Description
4 AXIS CNC FLOOR TYPE VERTICAL SPINDLE MACHINING CENTRE.
MD is an acronym for Double Clamp. Each clamp is equipped with two slots each one separately regulated
Longitudinal stroke X = 7400/9400/11400 mm
4 axis (X, Y, Z, A) managed by CNC
Suitable for processing on ANY surfaces, generated by the rotation of the spindle axis ( side by side at Y axes) on the positions within 180° (± 90°).
With dedicated accessories it can work on five sides of the profile
