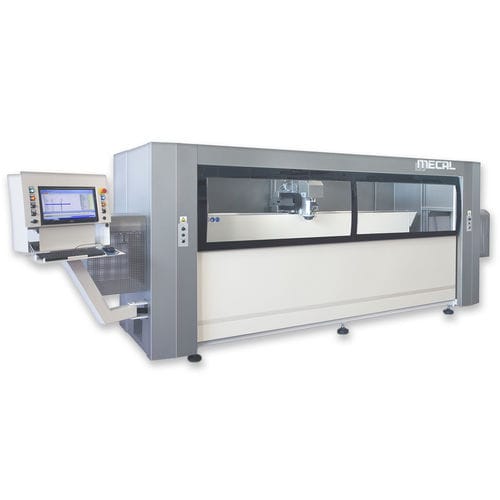

4-axis CNC machining center MC 309 NIKE MU DPM

verticalfor aluminumfor steel

MC 309 NIKE MU DPM AXIS CNC + 1 AXES PNEUMATICALLY MANAGED FLOOR-TYPE VERTICAL-SPINDLE MACHINING CENTRE. DPM = version provided with a device activated by a pneumatic/electronic combination dedicated to the automatic movement of the single clamps. 3 axis (X, Y, Z) controlled by CNC + 1 axes pneumatically managed. The positions 0° and ± 90° of the rocking beam are fixed; intermediate angles are manually settable and managed with a pneumatic system through the software. The workpieces are fixed with 4 pneumatic clamps, sliding on the tilting beam. The beam can be positioned at any preselected angle within ± 90°, managed directly by the CNC control. Suitable for the machining of aluminum profiles for the sector of windows and door. Workable section: 200 x 170 mm (YxZ)
