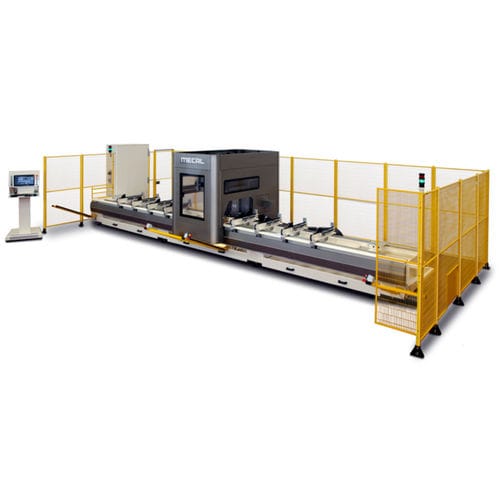

4-axis CNC machining center MC 304 ARIEL-3verticalfor aluminumfor steel
Add to favorites
Compare this product
Characteristics
- Number of axes
- 4-axis
- Spindle orientation
- vertical
- Machined material
- for aluminum, for steel, for PVC
- X travel
7,400 mm, 9,400 mm, 11,400 mm
(291.34 in, 370.08 in, 448.82 in)- Y travel
1,460 mm
(57.48 in)- Z travel
620 mm
(24.41 in)- Rotational speed
24,000 rpm
(150,796 rad.min-1)- Power
8.5 kW
(11.56 hp)
Description
4 AXIS CNC FLOOR TYPE VERTICAL SPINDLE MACHINING CENTRE.
Especially suitable for the machining of aluminium, PVC, steel and light alloys profiles of considerable size and weight, also for industrial applications.
4 axis (X, Y, Z, A) managed by CNC.
By means of dedicated tools it’s suitable for working on 5 sides of profiles.
Suitable for processing on ANY surfaces, generated by the rotation of the spindle axis (side by side at Y axes) on the positions within 180° (± 90°).
The strong base formed by tubulars guarantees the fundamental structural rigidity of the machine.
Catalogs
No catalogs are available for this product.
See all of MECAL‘s catalogs
