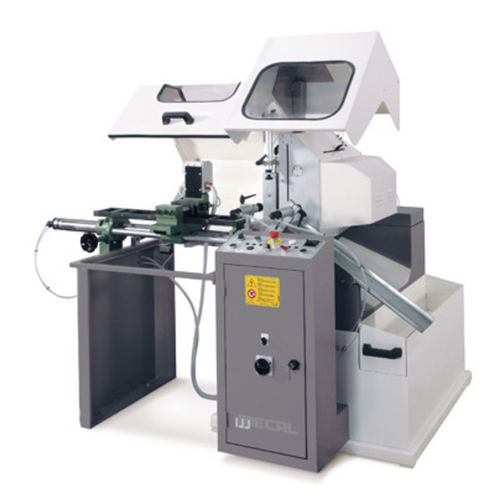

Miter saw SW 451 NSB horizontalfor aluminumfor PVC
Add to favorites
Compare this product
Characteristics
- Technology
- miter
- Orientation
- horizontal
- Treated material
- for aluminum, for PVC
- Operational mode
- automatic
- Other characteristics
- single-head
- Circular saw blade diameter
Max.: 500 mm
(20 in)Min.: 450 mm
(18 in)
Description
SW 451 NSB
Single mitre saw with horizontal feed and disappearing blade Ø 450 mm and with bar feeder.
FEATURES
Prepared for the installation of a blade Ø 500 mm.
Its equipped with a pneumatic feeder with stroke at choice among available (300 mm - 600 mm - 1000 mm).
A PLC system allows to manage the tilting cycle combined with the step?by?step cycle
Its able to perform cuts at 45°, 90°, 135°.
The intermediate degrees can be obtained by manually setting mechanical stops.
Also available in NSB-90 version suitable for the cut only to 90°.
Integrated guard for blade protection.
Frontal and straight blade feed with speed adjustments.
Hydro-pneumatic blade feed.
The base is made in one piece with cast aluminium alloy. The casting has been conceived to have a far better evacuation of the scraps.
