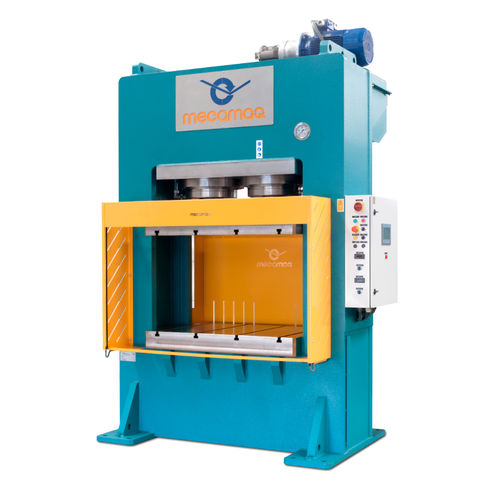

Electro-hydraulic press PDM600 4440
formingcustomhigh-pressure

electro-hydraulic press
electro-hydraulic press
Add to favorites
Compare this product


Characteristics

Operation
electro-hydraulic
Function
forming
Other characteristics
custom, high-pressure
Applications
for production
Force

600 tf

Opening

Min.: 0 mm
(0 in)

Max.: 800 mm
(31 in)

Stroke

500 mm
(19.685 in)

Table width

800 mm
(31 in)

Table length

1,400 mm
(55 in)

Max. pressure

320 bar
(4,641 psi)

Working speed

4 mm/s

Approaching speed

16 mm/s

Hydraulic pump power

4.1 kW

Weight

5,000 kg
(11,023 lb)

Overall length

2,820 mm
(111 in)

Overall width

1,130 mm
(44 in)

Overall height

2,780 mm
(109 in)

Description

Power (tons) - 120 Stroke (mm) - 500 Guides Ø (mm) - 70 Lower and upper plate (mm) - 1400x800 Maximum oppening (mm) - 800 Engine power (HP) - 5,5 Approximation speed (mm/s) - 16 Working speed (mm/s) - 4 Max. pressure (Bar) - 320 Machine dimensions (m) - 2,82x1,13x2,78 Weight (Kg.) - 5000
